- Entrance doors
Hinges for entrance doors
Entrance doors should be aesthetically pleasing, precise and secure. As front doors are the critical element in a façade’s design, SIMONSWERK offers a wide range of hinge systems to add that finishing touch to your front door.

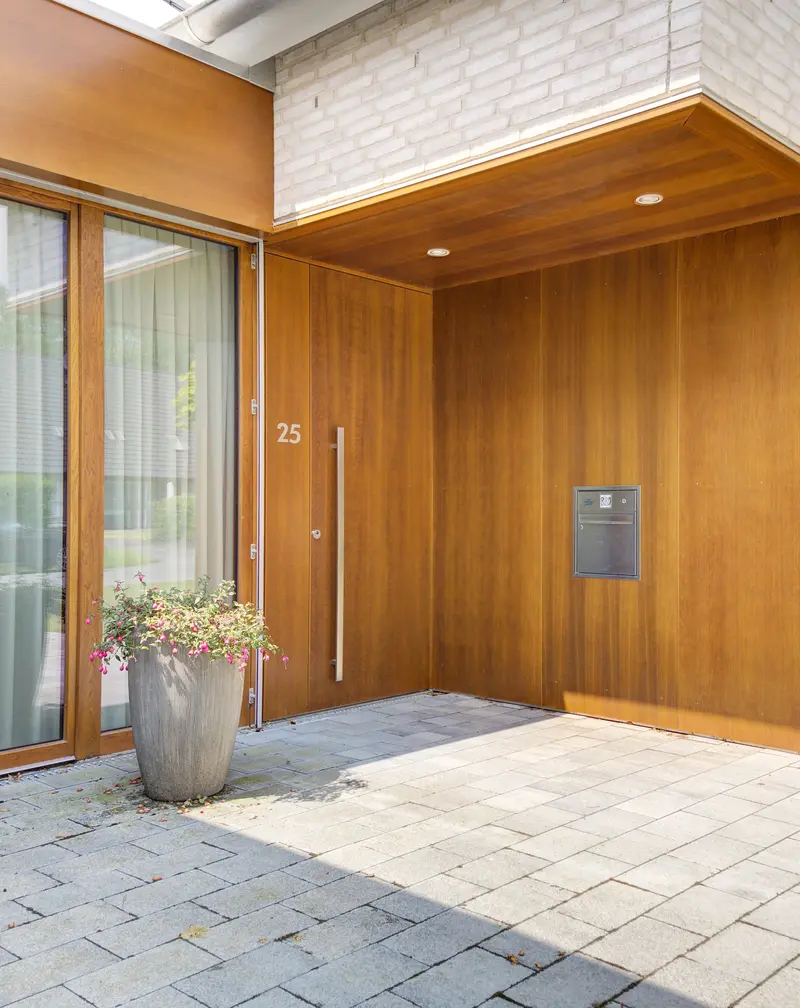

Timber entrance doors

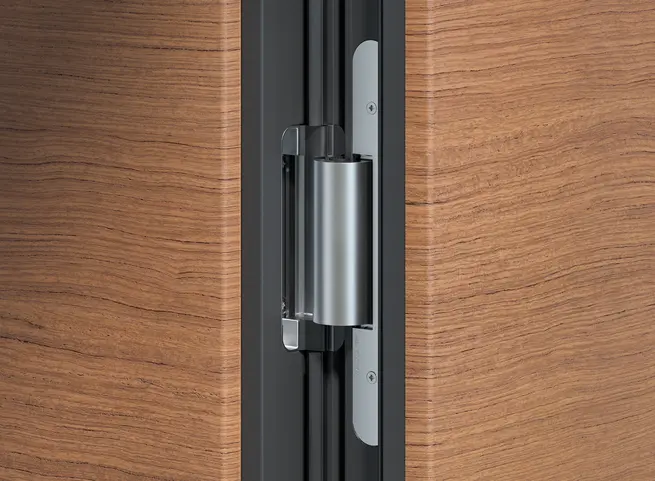

The completely concealed hinge system for rebated and unrebated timber doors – perfect for heavy timber entrance doors.
- for load capacities up to 300 kg
- for blind frames, block and casing frames
- comes with maintenance-free slide bearings
- optional permanent energy transfer feature
- convenient 3D adjustment

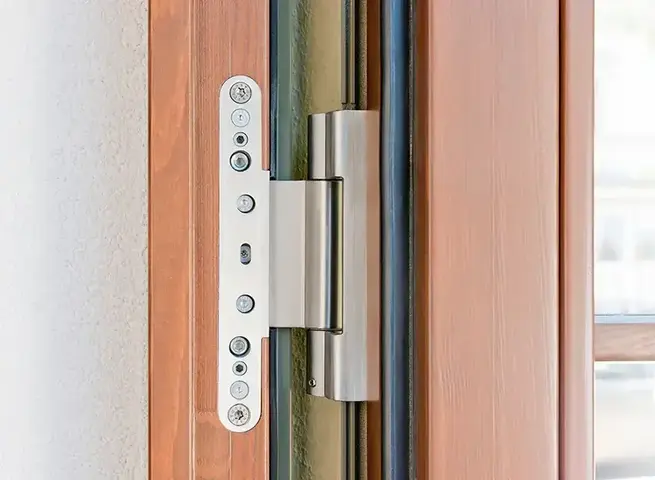

The VARIANT VX 7729/160-4 HA MSTS hinge system was specially developed for entrance doors made from timber and aluminium and is based on the tried-and-tested VARIANT VX knuckle hinge technology.
- compact unit consisting of knuckle hinge, receiver and cover angle
- for loads up to 160 kg
- for 3D-adjustable receivers VX 7531 3D and VX 7535 3D
- comes with security pin and welded hinge knuckle
- concealed axial-radial slide bearing

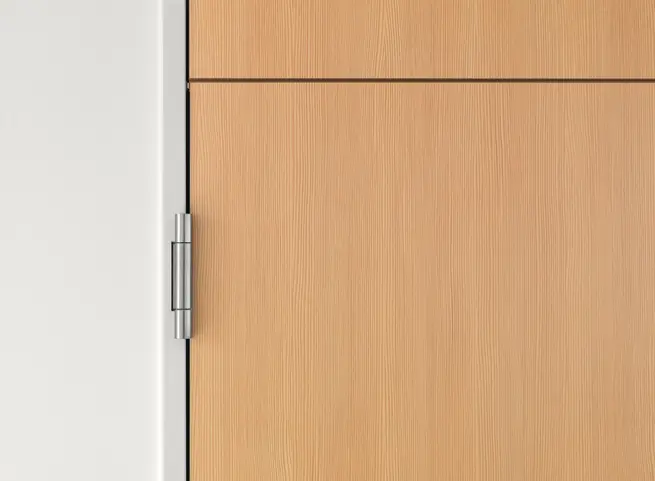

The hinge system for modern rebated, flush rebated and unrebated entrance doors.
- convenient 3D adjusting mechanism
- for load capacities up to 160 kg
- CE-certified
- concealed receiver in door leaf and frame
- for doors with overlap seal
- can be used for system testing in accordance with DIN EN 1627 et seq.
- optional security pin
- maintenance-free slide bearings

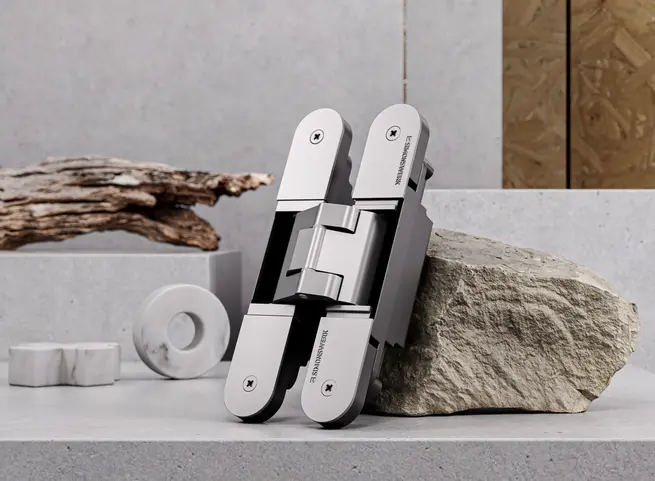

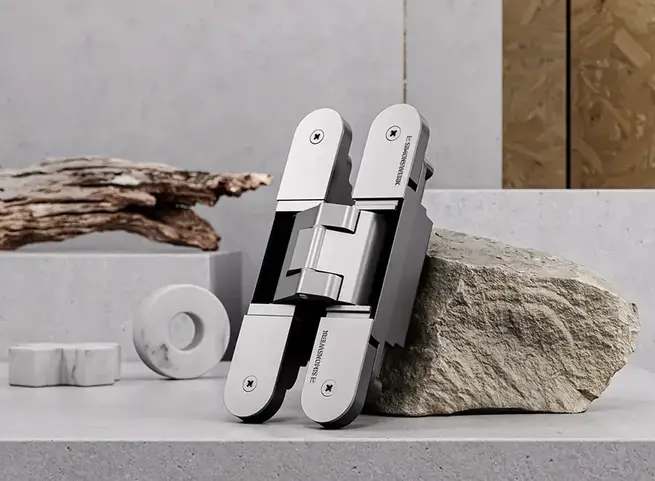

TECTUS
The completely concealed hinge system for unrebated and rebated timber entrance doors

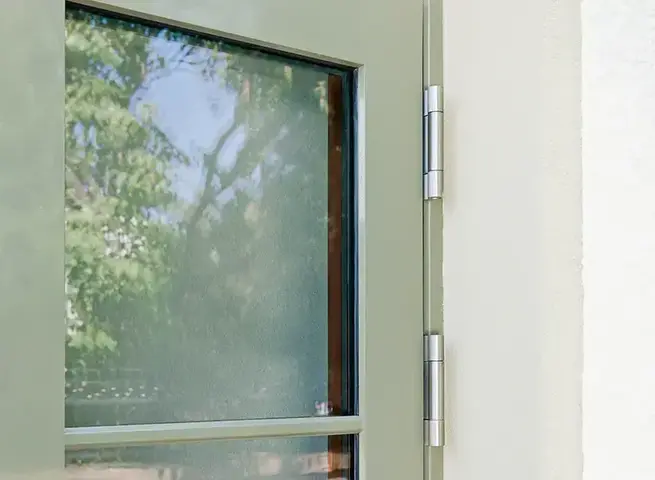

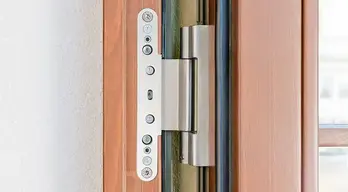

VARIANT Timber/aluminium
The hinge system specially developed for entrance doors that combine timber and aluminium
BAKA
For rebated timber entrance doors with concealed receivers in door leaf and frame
PVCu entrance doors
With a knuckle hinge aesthetic, the hinge system is of a very special high-quality stainless steel design.
- for load capacities up to 120 kg
- door part drilling positions of 10 mm - 13 mm
- no interruption in the acoustic seal
- comfortable eccentric adjustment
- internal, torsion-proof junction
- efficient assembly
- maintenance-free slide bearings
The SIKU 3D K6 model was specially designed for rebated PVCu entrance doors with greater door weights. This meets requirements for burglary prevention and insulation while utilising glass elements.
- for overlap thicknesses up to 26 mm
- for greater load capacities up to 160 kg
- 3-part weld-on hinge
- door part with sturdy angular fixing cams for extreme pull-out strength
- 3D adjustment (side +/- 5.0 mm, height + 4.0/- 1.0 mm, compression +/- 2.0 mm)
- integral security pin
- maintenance-free slide bearings
The door parts in the SIKU K3 series are equipped with angular fixing cams for extreme pull-out strength and feature sturdy fixing barbs for fastening.
- for load capacities up to 120 kg
- for overlap thicknesses up to 28 mm
- 3D adjustment (side +/- 5.0 mm, height + 5.0/- 1.0 mm, compression +/- 2.0 mm)
- integral security pin
- maintenance-free slide bearings
SIKU K4 is mainly suited to light PVCu entrance doors and side entrance doors.
- overlap thicknesses from 15 mm to 28 mm
- for load capacities up to 80 kg
- comes with fixing barbs
- door part for flexible fastening
- 3D adjustment (side +/- 5.0 mm, height + 5.0/- 1.0 mm, compression +/- 2.0 mm)
- integral security pin
- CE-certified
SIKU RB
Knuckle hinge system made from high-quality stainless steel with torque-proof junction for rebated PVCu entrance doors
SIKU 3D K6 Series
For particularly heavy PVCu entrance doors with greater load capacities up to 160 kg
SIKU 3D K3 Series
For PVCu entrance doors with angular fixing cams and load capacities up to 120 kg
SIKU 3D K4 Series
For PVCu side entrance doors with angular fixing cams for loads up to 80 kg
