Solutions for special requirements
Architecture is diverse. Stringent requirements in terms of technology and outstanding design are making architecture increasingly complex. Individual solutions are key here for special requirements. SIMONSWERK therefore offers a variety of special hinge systems to give every room the right presence.
Products for special requirements

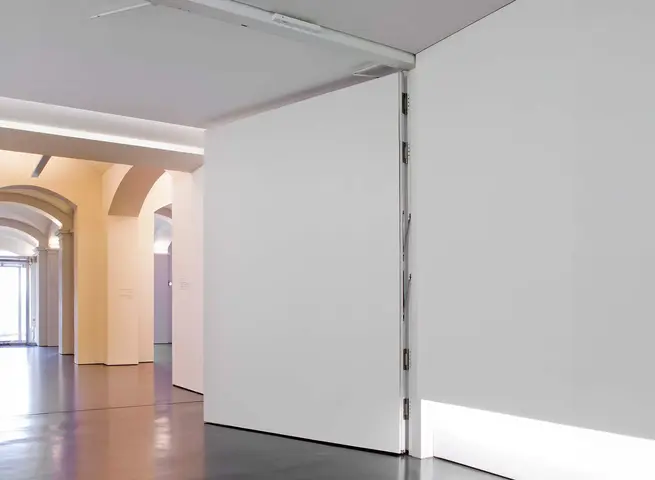

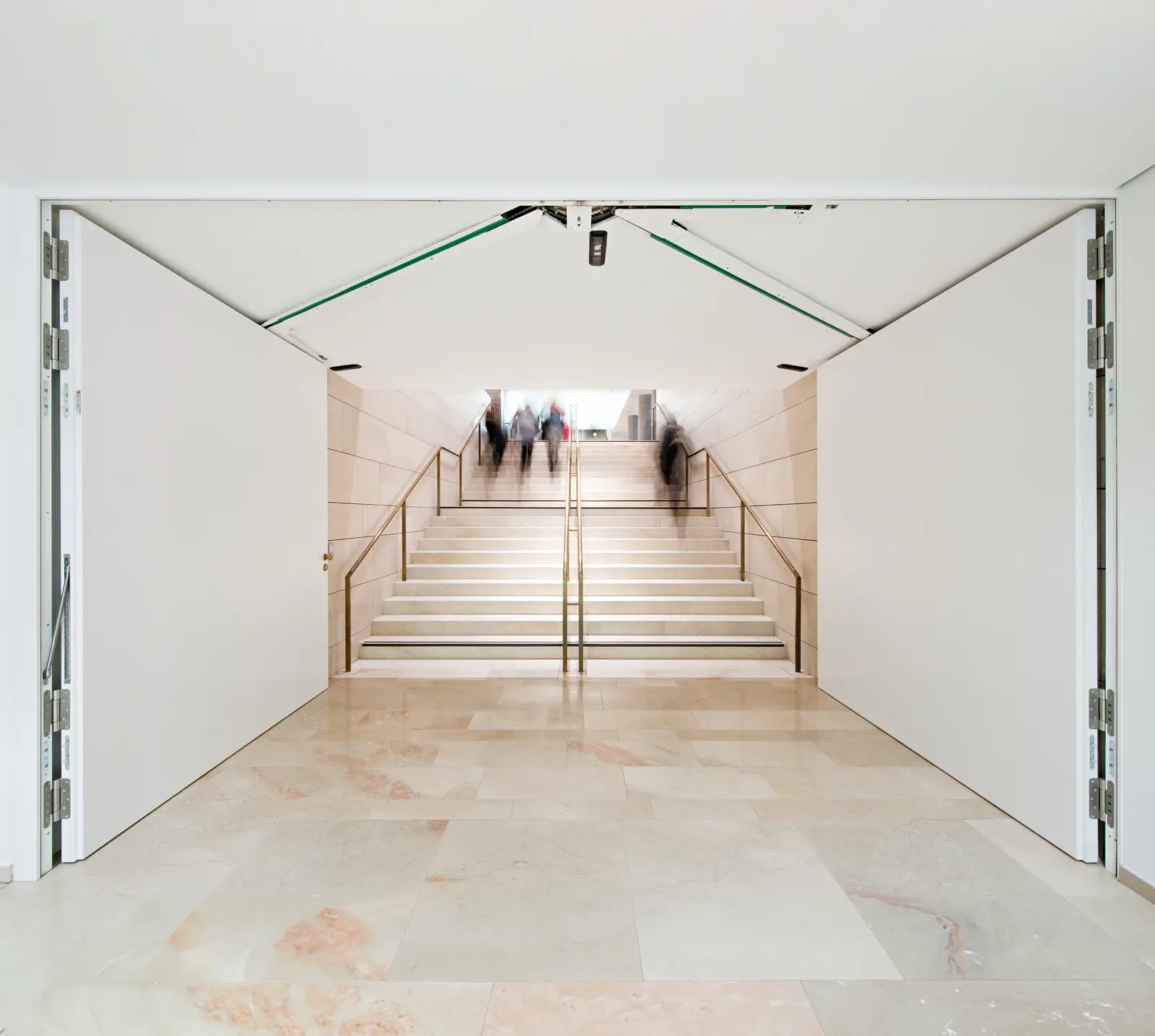

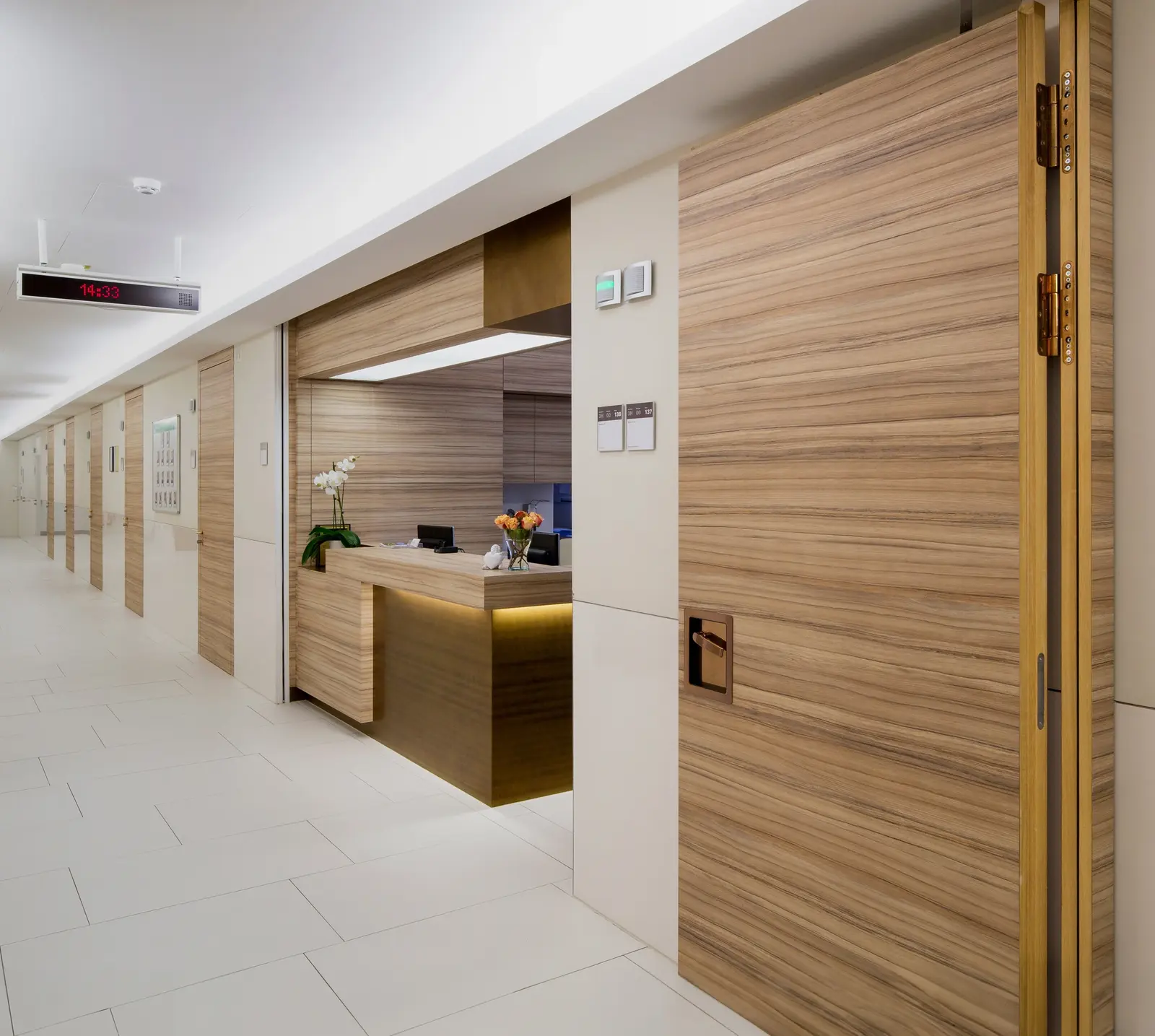

With a welded hinge knuckle, the hinge system for heavy-duty doors is suitable for timber, steel and aluminium frames. So even the most demanding requirements for fire and smoke protection and soundproofing can be met.
- for rebated and unrebated heavy-duty doors
- load capacity 400 kg
- for blind, block and casing frames
- optional receiving groove for continuous acoustic seal
- for 3D-adjustable VARIANT VX receivers
- with internal torsion-proof pin
- maintenance-free axial-radial slide bearings
Providing adjustable hinge solutions, VARIANT Compact is highly suited to elegant frame views. By offsetting the hinge receiver in the door leaf, pre-existing steel frames etc. can be renovated in a way that saves time and money
- adjustable receiver in the door leaf
- comfortable 3D adjustment for slim frame constructions
- for load capacities up to 200 kg
- alternative model variants with reduced, elegant knuckles
- suitable for functional doors with smoke and fire protection
The VARIANT VX 7729/160-4 HA MSTS hinge system was specially developed for entrance doors made from timber and aluminium and is based on the tried-and-tested VARIANT VX knuckle hinge technology.
- compact unit consisting of knuckle hinge, receiver and cover angle
- for load capacities up to 160 kg
- for 3D-adjustable receivers VX 7531 3D and VX 7535 3D
- comes with security pin and welded hinge knuckle
- concealed axial-radial slide bearing

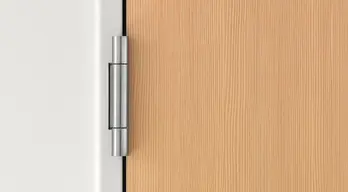

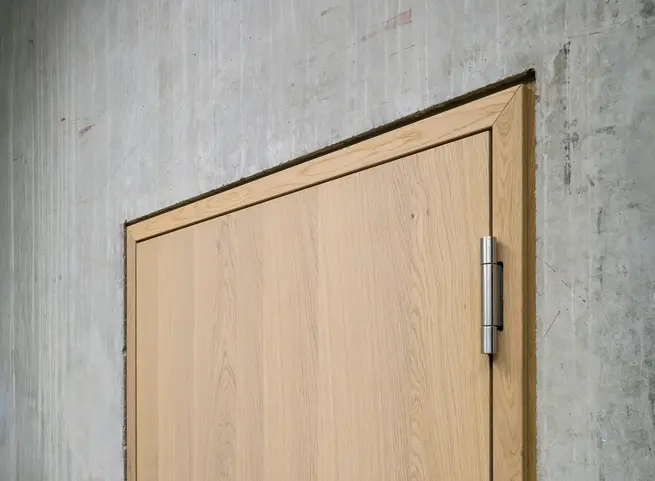

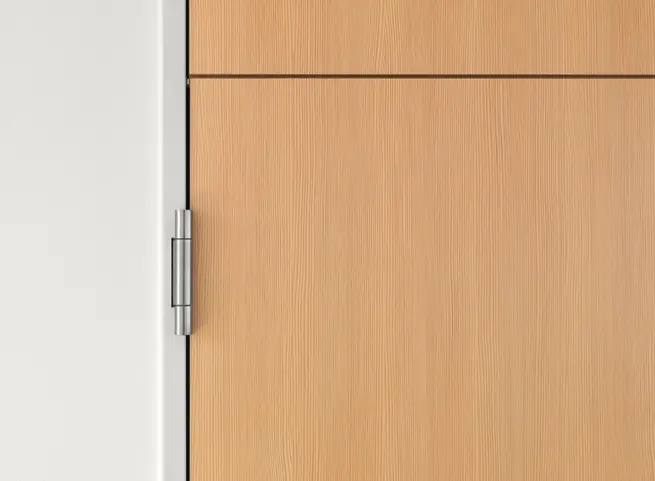

This hinge system features reduced, elegant knuckle and excels with its linear shapes and a reduced yet sturdy construction, integrating seamlessly into sophisticated architecture.
- elegant knuckle reduced in diameter
- for slim, recessed frame facings
- for load capacities up to 160 kg
- CE-certified
- suitable for fire and smoke protection
