Door hinges for heavy-duty doors
SIMONSWERK heavy duty hinges are visually pleasing and functionally impressive, providing the perfect finishing touch to doors in high-value construction works. In commercial and public buildings, the tailored, modern hinge range is used on heavily frequented doorways, prestigious entrances and oversized exits.

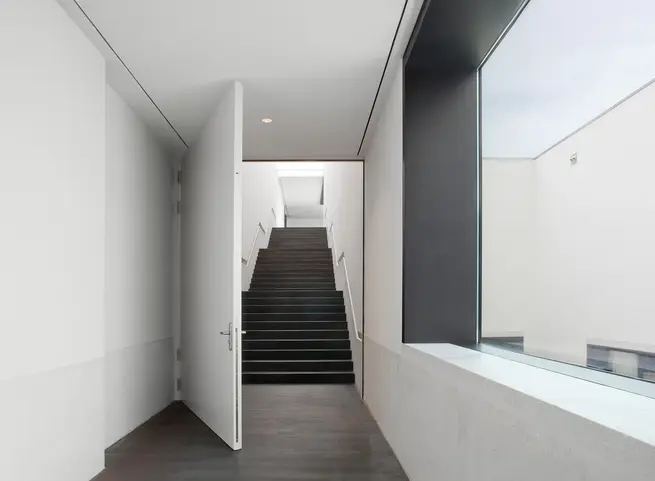

Heavy-duty timber doors

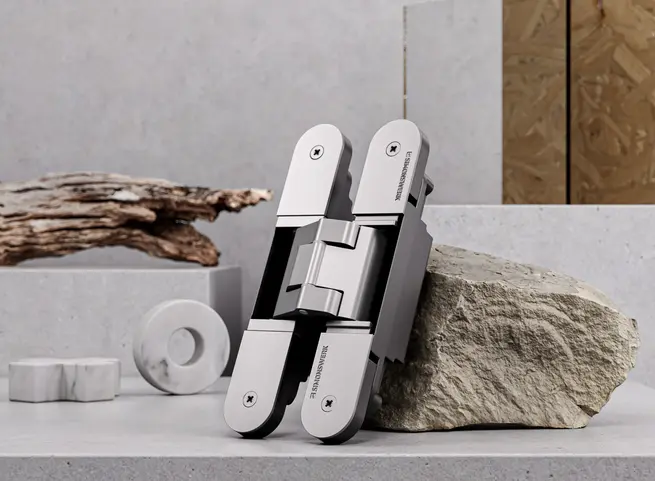

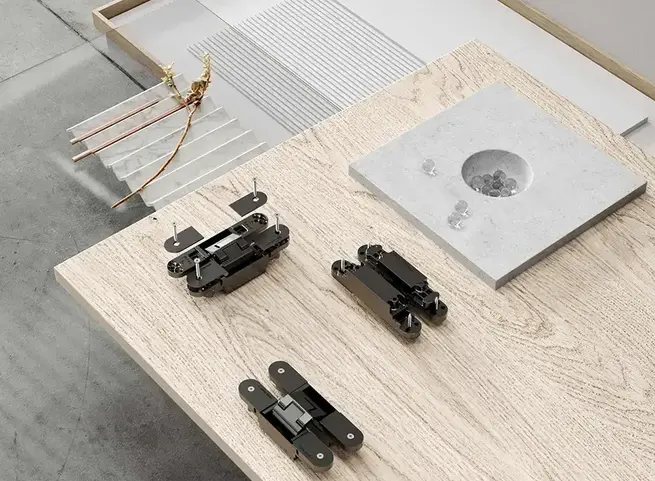

The completely concealed hinge system for rebated and unrebated timber doors are excellently suited to non-residential applications.
- for load capacities up to 300 kg
- for blind, block, steel and casing frames
- optionally for recessed frame facings
- includes integrated intumescent kit
- comes with maintenance-free slide bearings
- optional permanent energy transfer feature
- convenient 3D adjustment

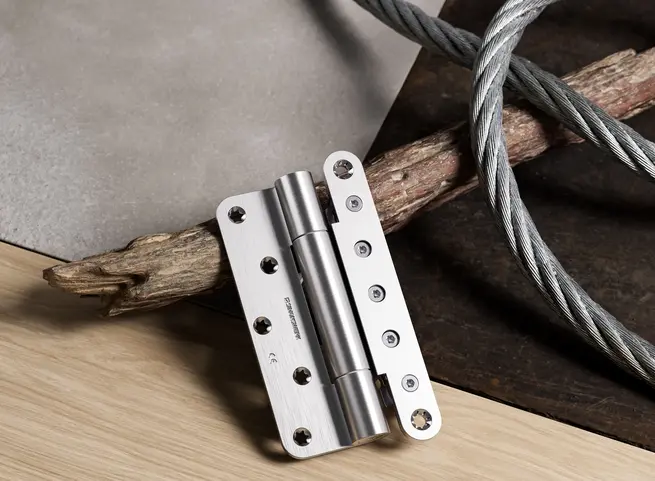

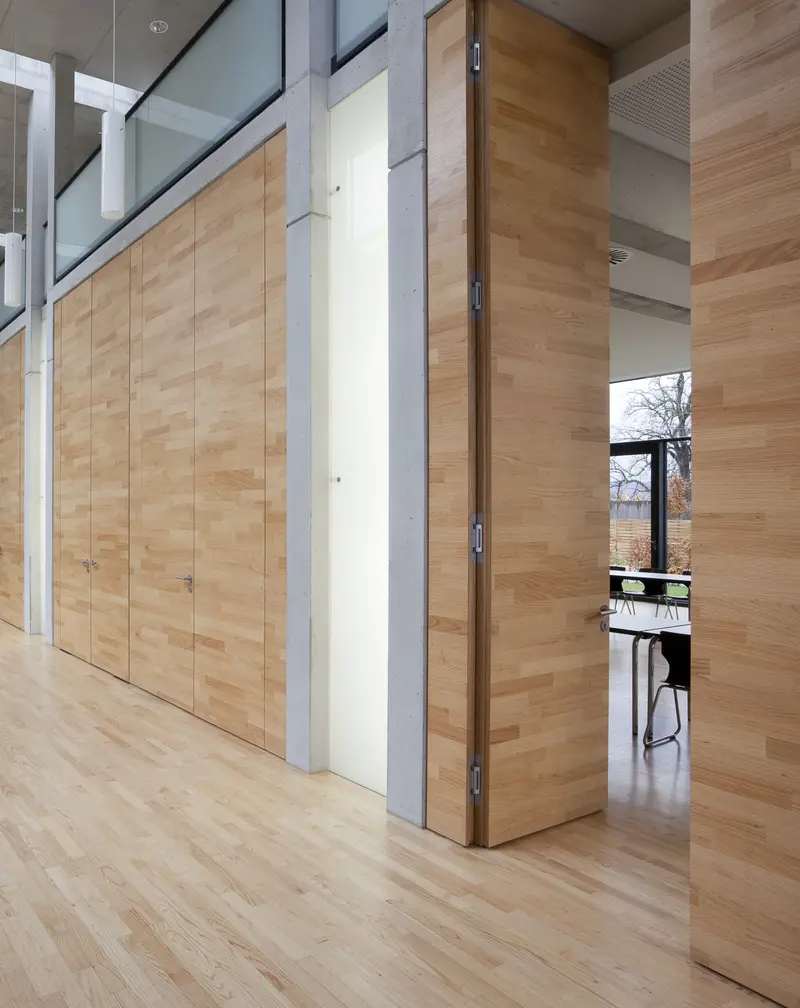

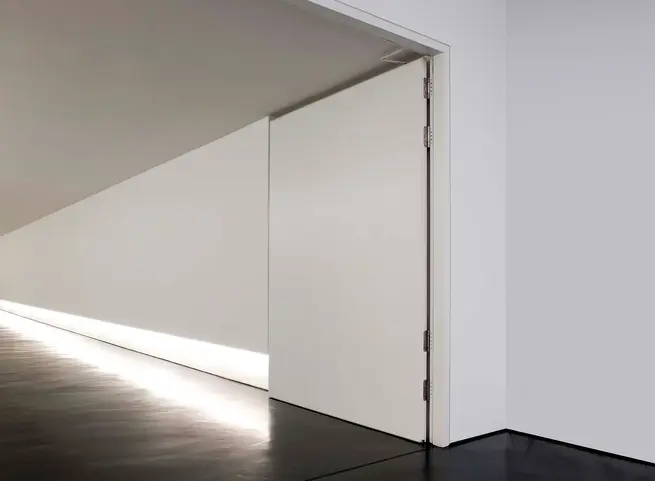

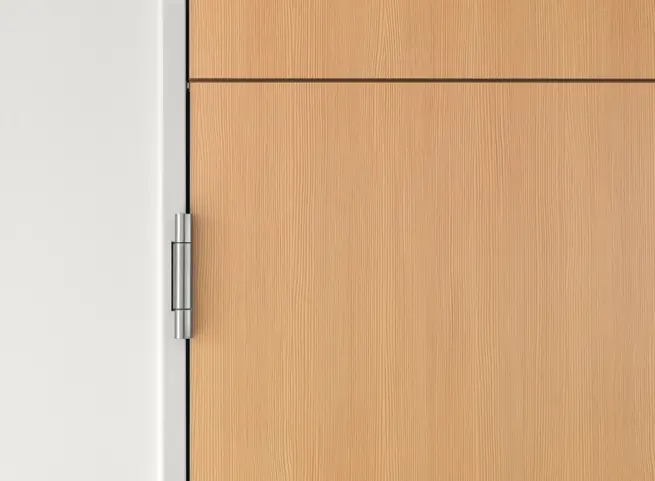

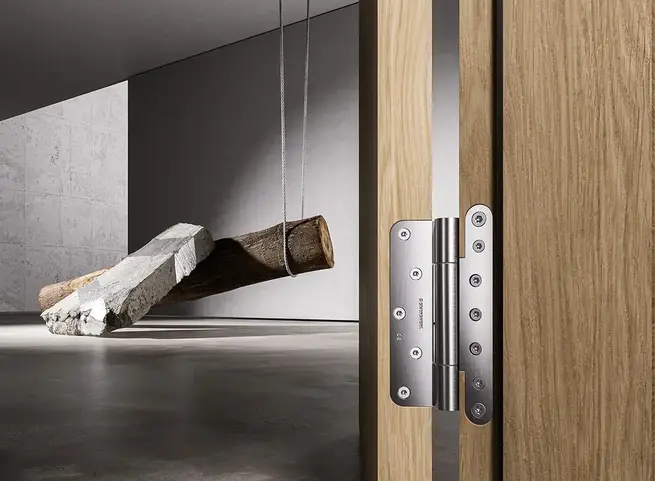

The universal hinge system for unrebated, rebated and flush-rebated heavy-duty timber doors
- for load capacities up to 400 kg
- for door leaf thicknesses up to 70 mm
- optional acoustic seal
- for 3D-adjustable VARIANT VX receivers
- optional elegant knuckle reduced in diameter
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearing

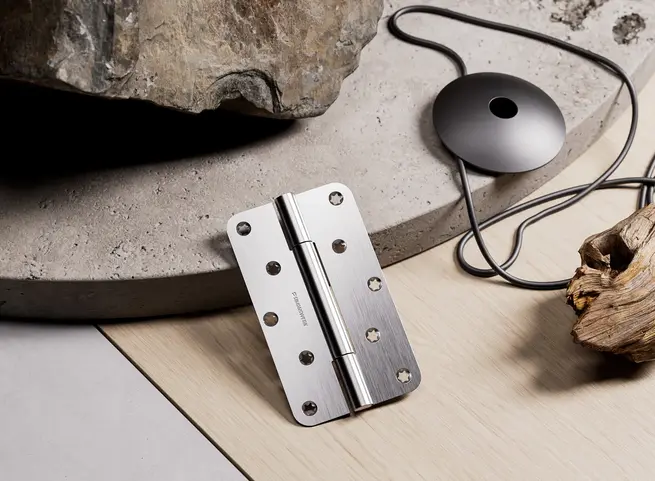

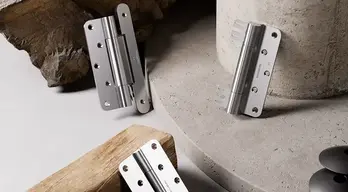

The tried-and-test hinge system for heavy-duty rebated, flush-rebated and unrebated doors.
- load capacities up to 200 kg
- featuring adjustable receiver in the door leaf
- for VARIANT VN receivers for timber frames
- optional continuous acoustic seal
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearing
Heavy-duty steel doors

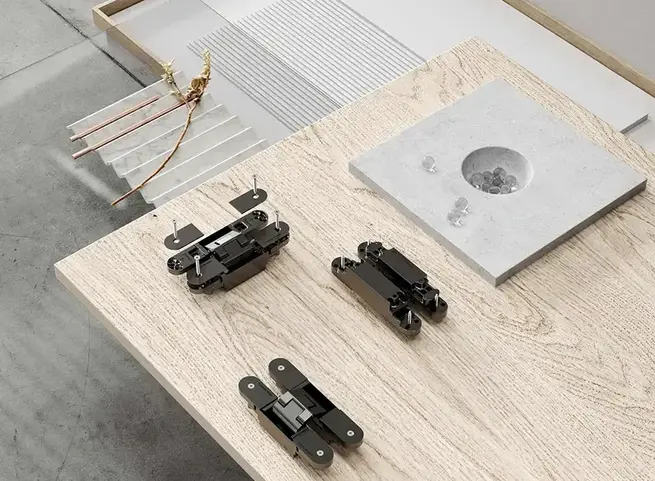

The completely concealed hinge system for rebated and unrebated timber doors are excellently suited to non-residential applications.
- for load capacities up to 300 kg
- for blind, block, steel and casing frames
- optionally for recessed frame facings
- includes integrated intumescent kit
- comes with maintenance-free slide bearings
- optional permanent energy transfer feature
- convenient 3D adjustment

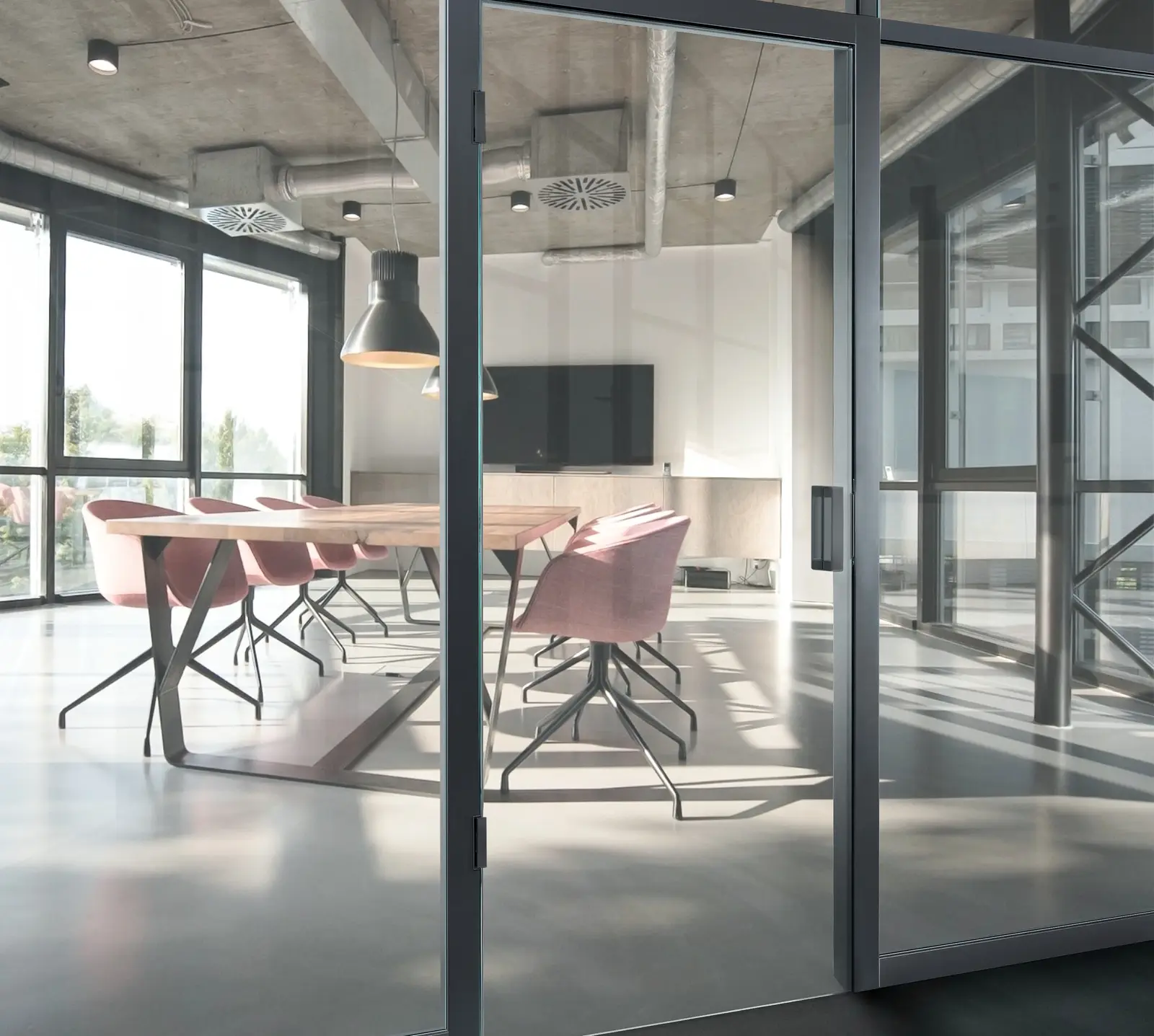

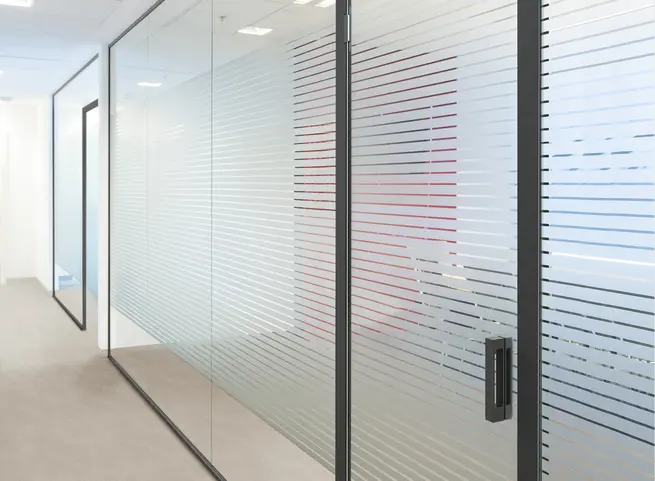

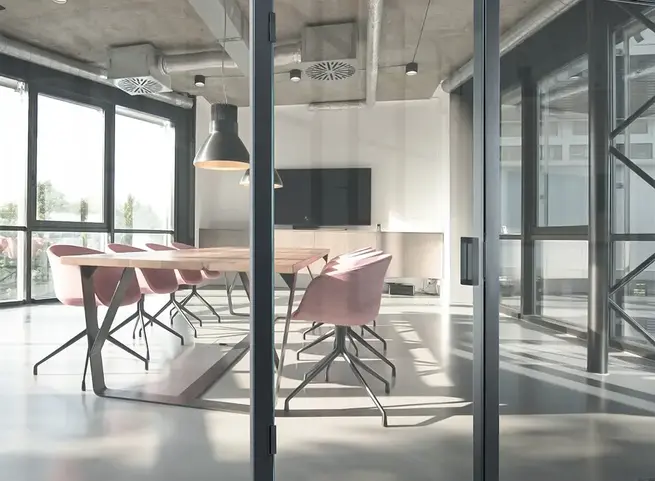

Heavy-duty glass doors

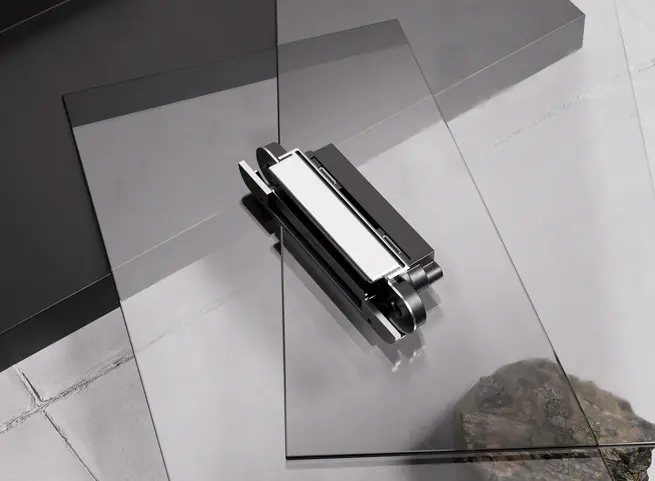

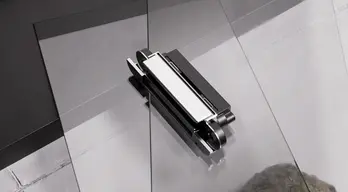

Perfect for flush use of glass doors in non-residential applications with tempered safety glass with glass thicknesses from 8 mm to 10 mm on timber, steel and aluminium frames.
- easy and fast assembly without glass machining
- for load capacities up to 100 kg
- without drilling the door leaf
- infinitely variable sideways and height adjustment
- maintenance-free slide bearings
- continuous operation tested at ift, Rosenheim

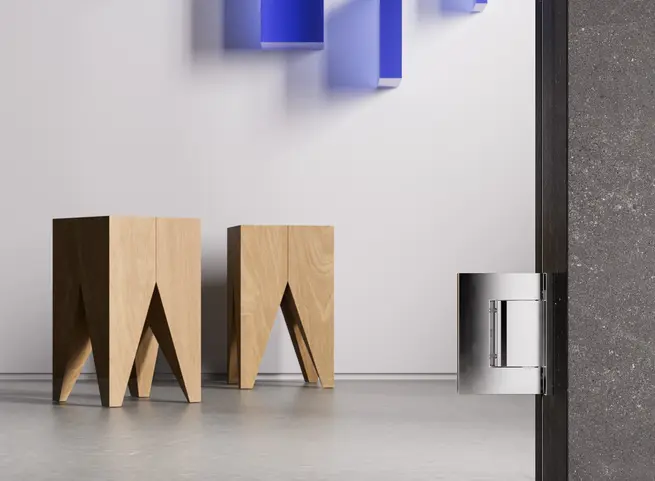

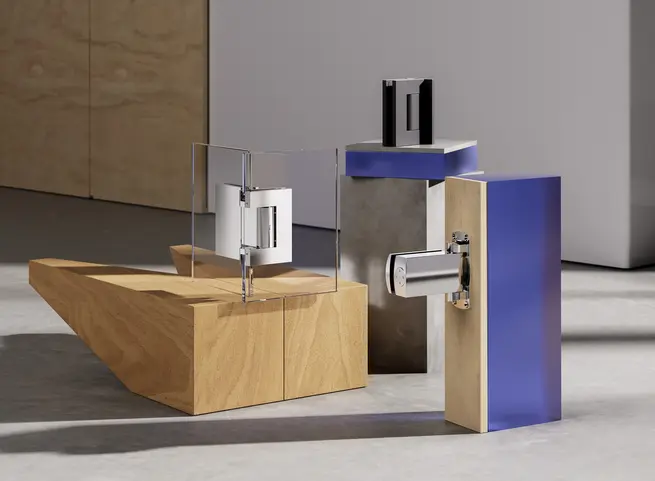

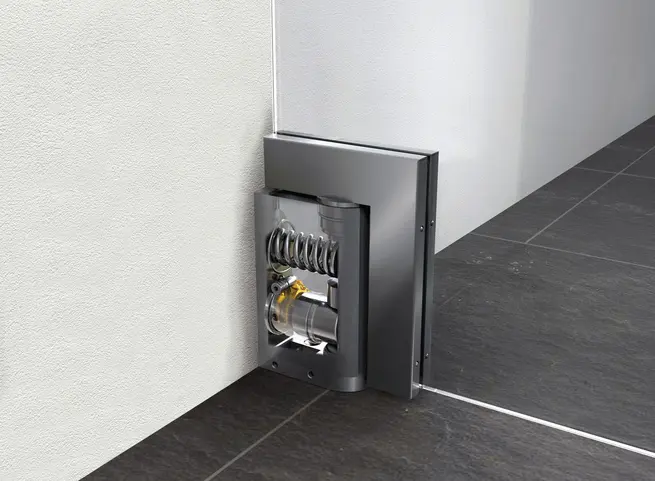

The self-closing screw-on hinge for double-action and rebated glass doors comes into its own when used in office and administrative buildings, showrooms, museums and upmarket culinary establishments.
- setting the door closing speed
- 0°-point regulation for double-action doors
- setting for 0°, +90°, -90°

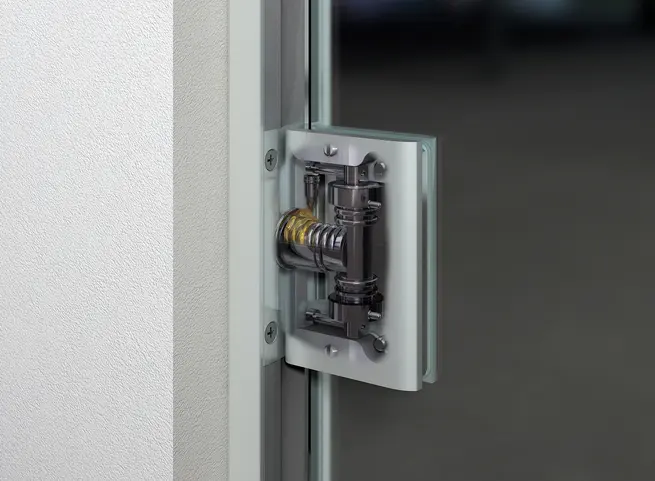

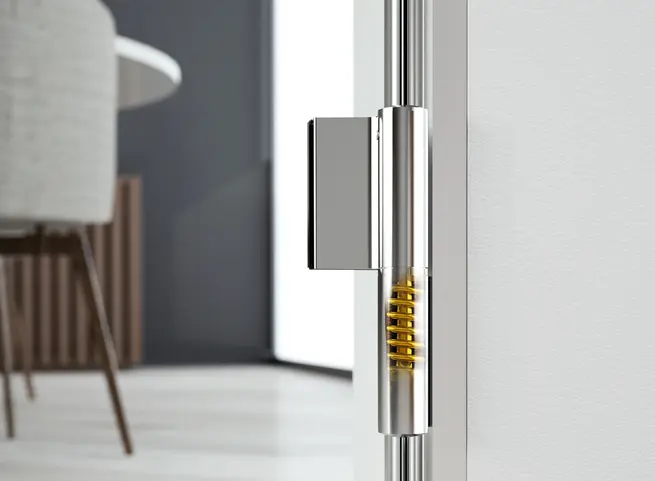

The self-closing hinge is suitable for all door opening angles up to 180° and is also available as a version with automatic closing from 160° to 0° – ideal for office and administrative buildings and for separating specific areas in medical practices, for example.
- glass thickness 8 mm to 21.52 mm
- load capacity up to 120 kg
- setting the end motion
- shock absorbers with an integrated overpressure relief system prevent breakage when accidentally tugged

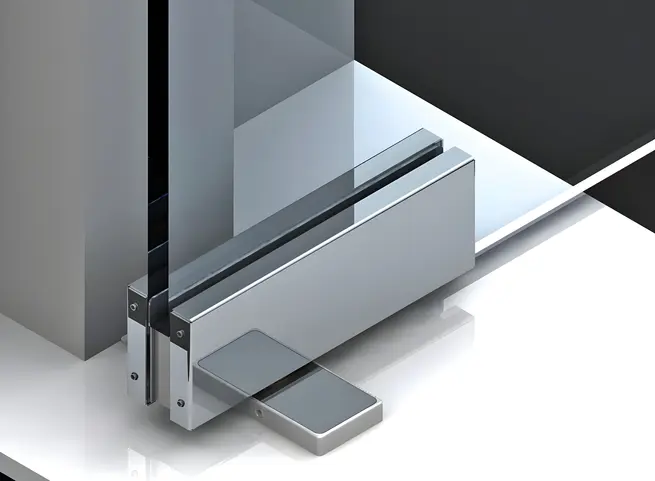

The pivot hinge for heavy glass double-action doors has an elegant, minimalist design. The portfolio also comprises completely concealed hinges for flush room structures, such as in shopping centres, offices and commercial buildings.
- speed regulation system
- load capacity up to 150 kg, max. door width 1200 mm
- glass thicknesses from 8 mm to 19.5 mm
- minimalist design
- model variants for inside and outside doors

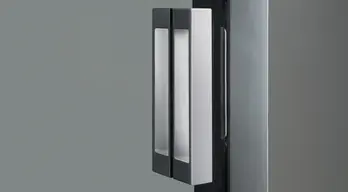

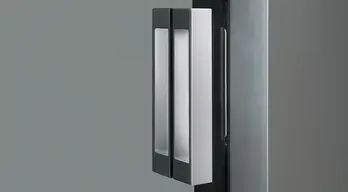

KEEP CLOSED allows glass doors in non-residential buildings to be moved completely silently with minimal ergonomic effort and without the usual ‘push-pull-slide’ motion.
- innovative, zero-current and magnetic
- intelligent alternative to conventional latching systems
- holds in closed position without direct contact with the closing magnet
- individually adjustable retention force
- perfectly coordinated components
- diverse range of handles
Special requirements for heavy-duty doors

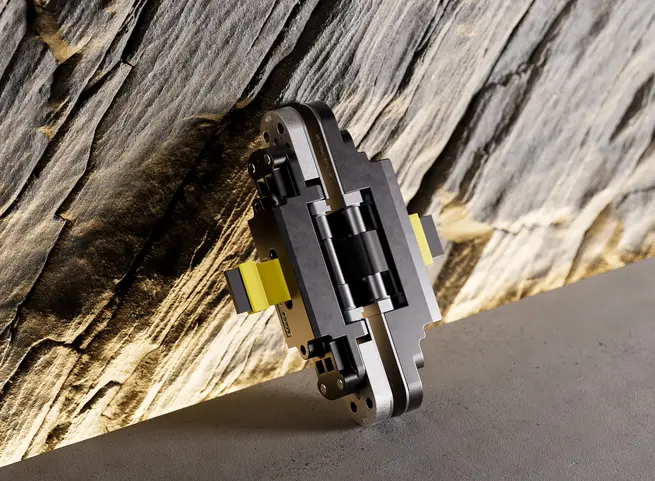

Completely concealed hinge system with permanent energy transfer for unrebated and flush-rebated residential doors.
- includes individually selectable connection adapter
- for timber, steel and aluminium frames
- convenient 3D adjustment (side +/- 3.0 mm, height +/- 3.0 mm, compression +/- 1.5 mm)
- maintenance-free slide bearings

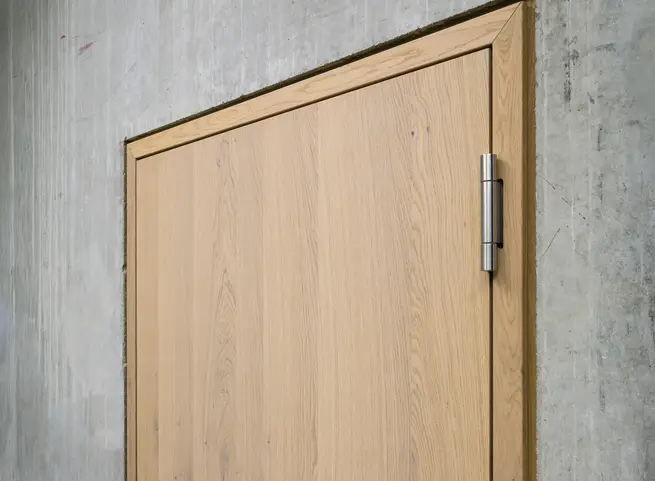

With a welded hinge knuckle, the hinge system for heavy-duty commercial doors is suitable for timber, steel and aluminium frames. So even the most demanding requirements for fire and smoke protection and soundproofing can be met.
- for rebated and unrebated heavy-duty doors
- load capacity 400 kg
- for blind, block and casing frames
- optional receiving groove for continuous acoustic seal
- for 3D-adjustable VARIANT VX receivers
- internal torsion-proof pin
- maintenance axial-radial slide bearings

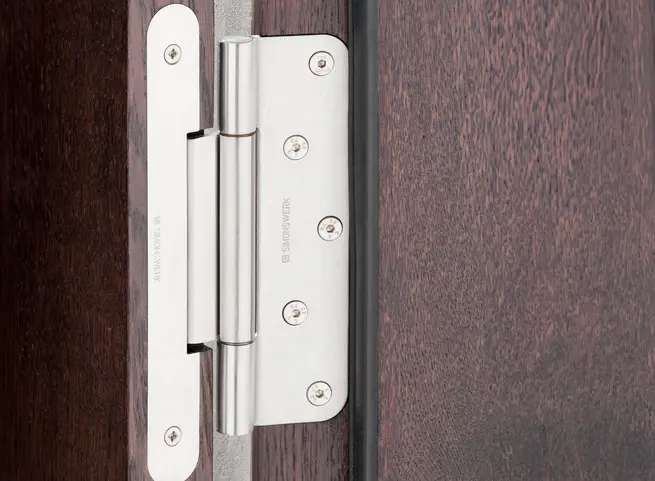

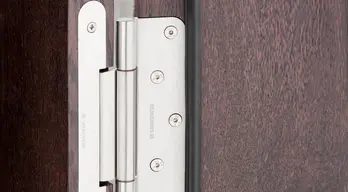

Providing adjustable hinge solutions, VARIANT Compact is highly suited to elegant frame views. By offsetting the hinge receiver in the door leaf, pre-existing steel frames etc. can be renovated in a way that saves time and money.
- adjustable receiver in the door leaf
- convenient 3D adjustment
- for slim frame constructions
- for load capacities up to 200 kg
- alternative model variants with reduced, elegant knuckles
- suitable for functional doors with smoke and fire protection

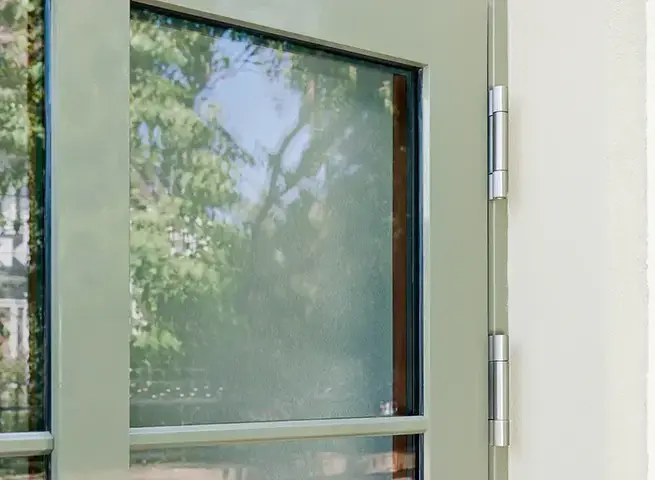

The VARIANT VX 7729/160-4 HA MSTS hinge system was specially developed for entrance doors made from timber and aluminium and is based on the tried-and-tested VARIANT VX knuckle hinge technology.
- compact unit consisting of knuckle hinge, receiver and cover angle
- for loads up to 160 kg
- for 3D-adjustable receivers VX 7531 3D and VX 7535 3D
- comes with security pin and welded hinge knuckle
- concealed axial-radial slide bearing
