Glass doors
Maximum transparency
Is glass a crystal clear matter? Not necessarily. Glass can be used in a transparent form as a solid, versatile material but it is frequently used for architectural purposes as translucent frosted glass, particularly in doors. The material properties can be easily modified with different compositions. Glass can be recycled with no loss of quality. As a natural resource, it also has an outstanding material cycle.
Hinge systems for heavy-duty doors
The self-closing EVO, VERTO and BILOBA hinges are characterised by their versatility, security, functionality and durability. The integrated hydraulic damping makes sure the closing process is gentle and controlled, and thanks to an infinitely variable regulator on the hinge the closing speed can be adapted on a case-by-case basis to the weight and width of any door and the walking speed of the users.
Model variants for heavy-duty glass doors

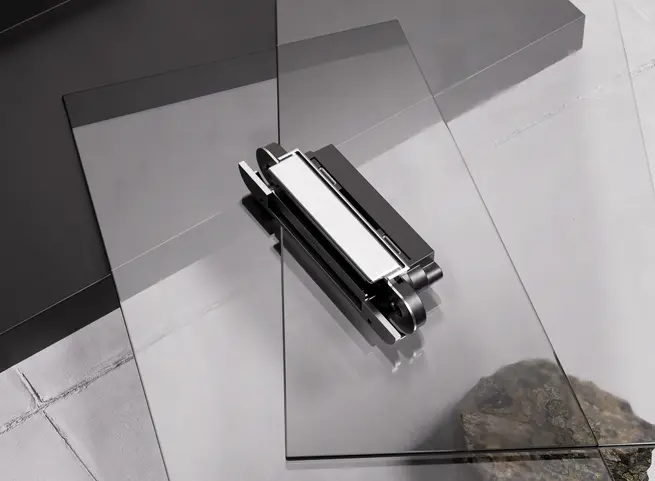

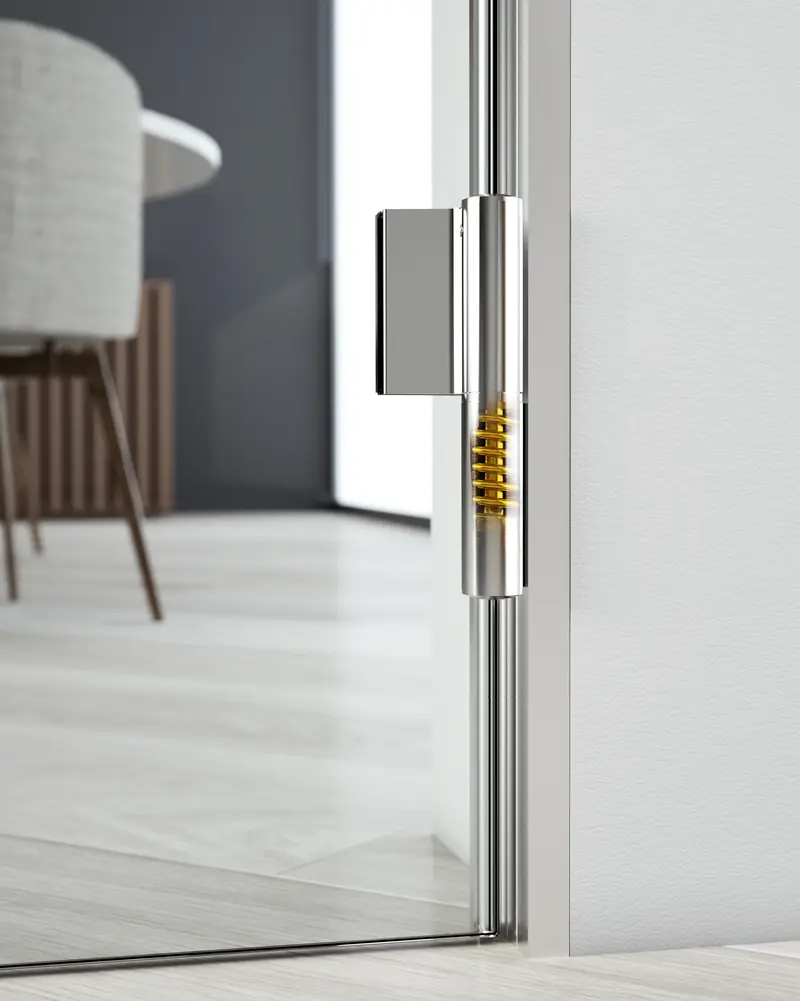

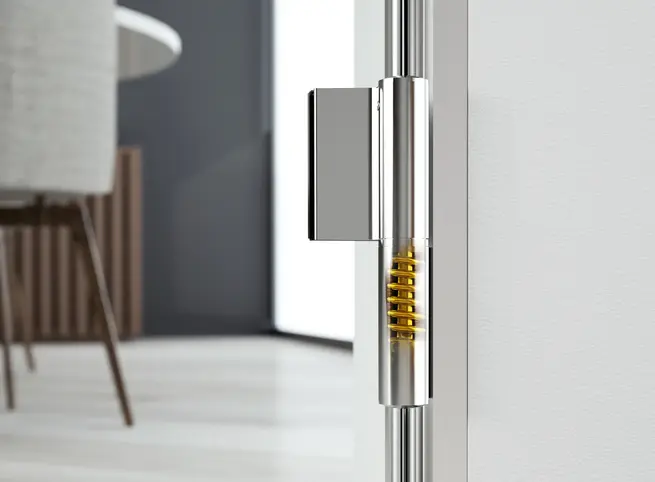

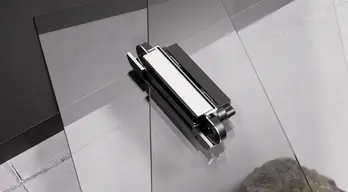

Perfect for flush use of glass doors on timber, steel and aluminium frames in non-residential applications with tempered safety glass with glass thicknesses of 8 mm and 10 mm.
- easy and fast assembly without glass machining
- for load capacities up to 80 kg
- without drilling the door leaf
- continuous side and height adjustment
- maintenance-free slide bearings
- continuous operation tested at ift, Rosenheim

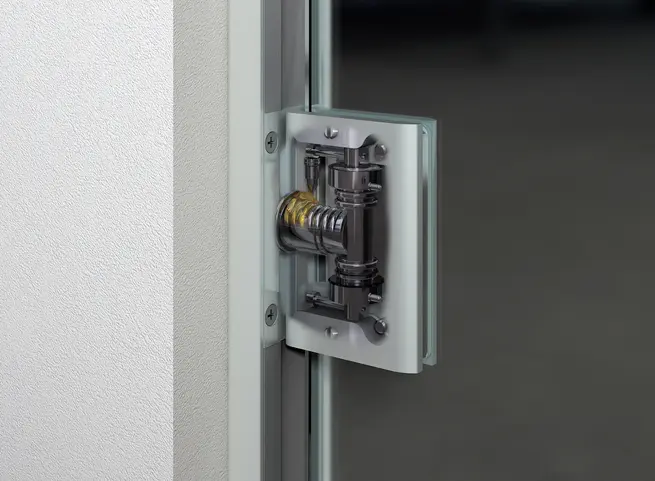

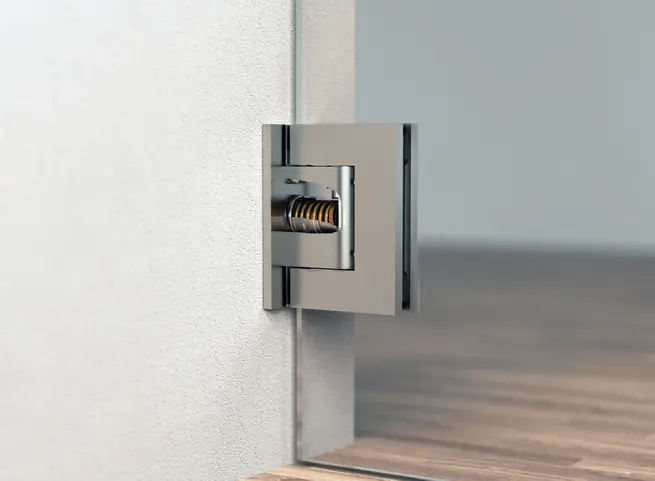

The self-closing screw-on hinge for double-action and single-action glass doors comes into its own when used in office and administrative buildings, showrooms, museums and upmarket culinary establishments.
- setting the door closing speed
- 0°-point regulation for double-action doors
- setting for 0°, +90°, -90°

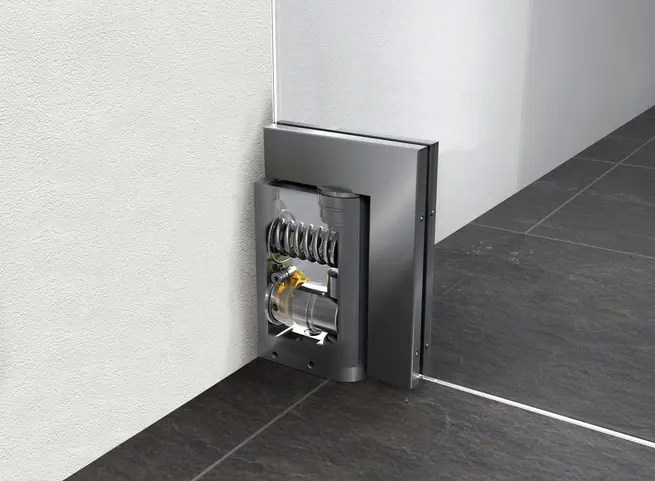

The self-closing hinge is suitable for all door opening angles up to 180° and is also available as a version with automatic closing from 160° to 0° – ideal for office and administrative buildings and for separating specific areas in medical practices, for example.
- glass thickness 8 mm to 21.52 mm
- load capacity up to 120 kg
- setting the end motion
- shock absorbers with an integrated overpressure relief system prevent breakage when accidentally tugged

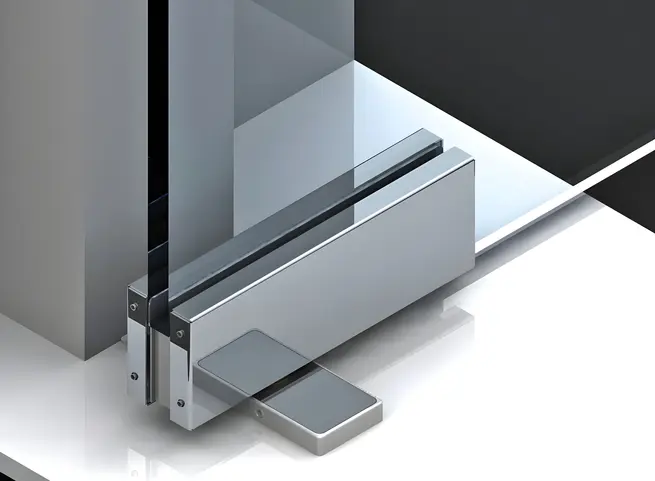

The pivot hinge for heavy glass double-action doors has an elegant, minimalist design. The portfolio also comprises completely concealed hinges for flush room structures, such as in shopping centres, offices and commercial buildings.
- speed regulation system
- load capacity up to 150 kg, max. door width 1200 mm
- glass thicknesses from 8 mm to 19.5 mm
- minimalist design
- model variants for inside and outside doors

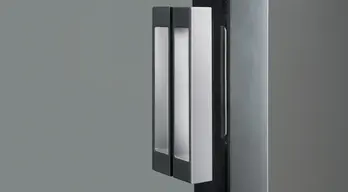

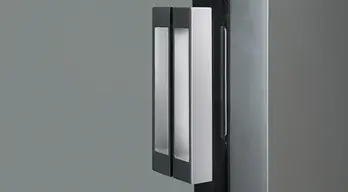

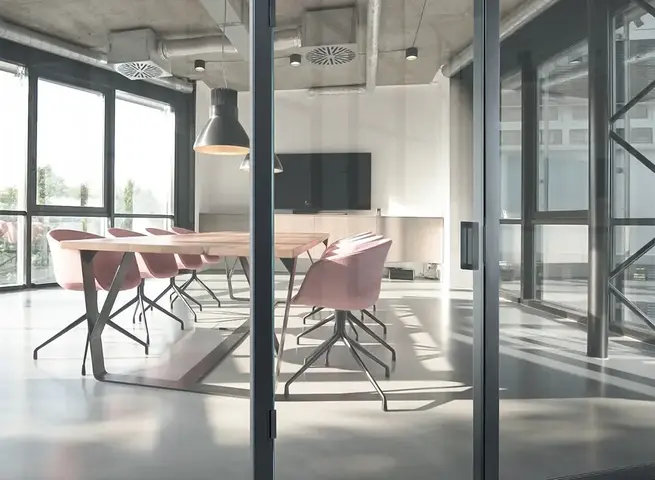

KEEP CLOSED allows glass doors in non-residential buildings to be moved completely silently with minimal ergonomic effort and without the usual ‘push-pull-slide’ motion
- innovative, zero-current and magnetic
- intelligent alternative to conventional latching systems
- remains in closed position without direct contact with the closing magnet
- individually adjustable retention force
- perfectly coordinated components
Hinge systems for residential doors
The hydraulic EVO, VERTO and BILOBA hinges feature a self-closing function and can be used on inner and outer doors in homogeneous or subtle fashion or as an effective contrast. The doors can optionally be equipped with door push handles or a latch lock and strike box. The latch of the lock is retracted quietly and reliably into the striker plate, preventing damage to glass, hinges and locks as well as noise.
Model variants for glass residential doors

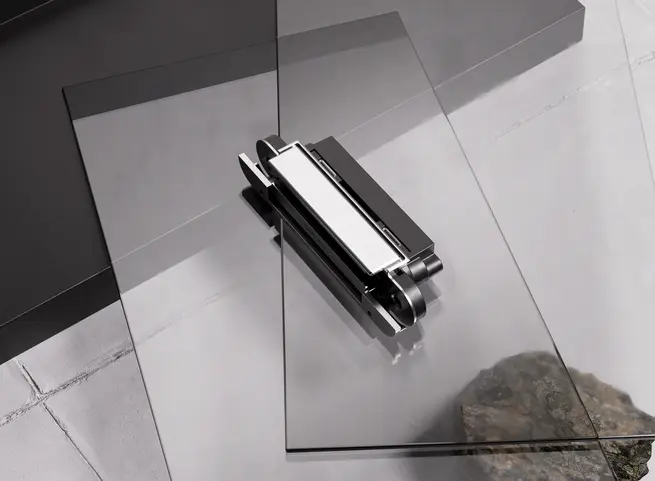

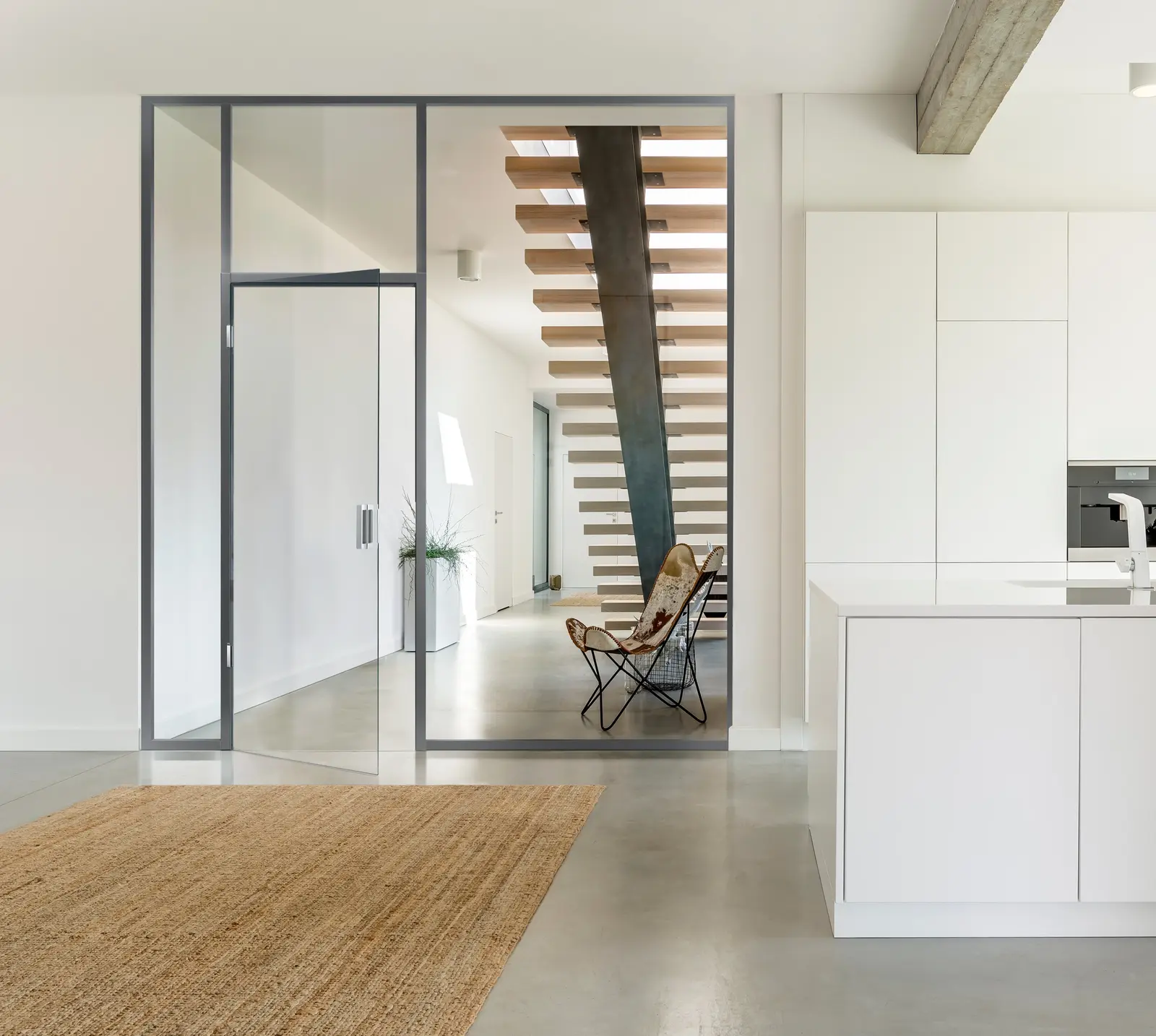

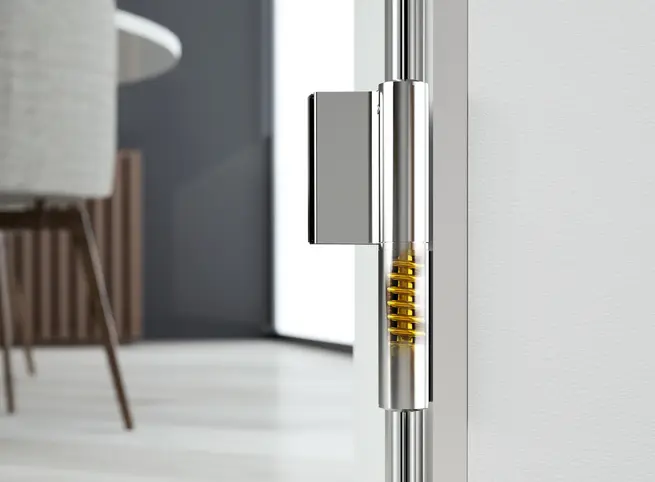

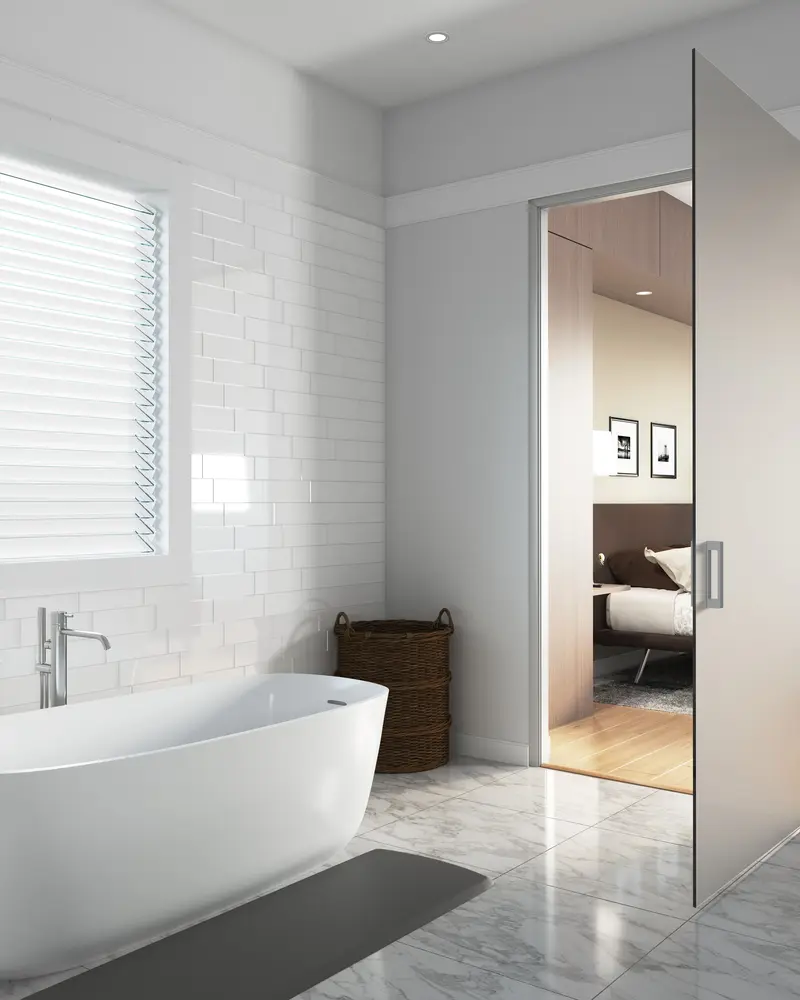

The flush use of glass doors in unobtrusive and linear design is ideal for a reduced, elegant look in aesthetically designed residential areas
- for timber, steel and aluminium frames
- tempered safety glass (ESG) with glass thicknesses of 8 and 10 mm
- for load capacities up to 80 kg
- without drilling the door leaf
- continuous side and height adjustment
- maintenance-free slide bearings

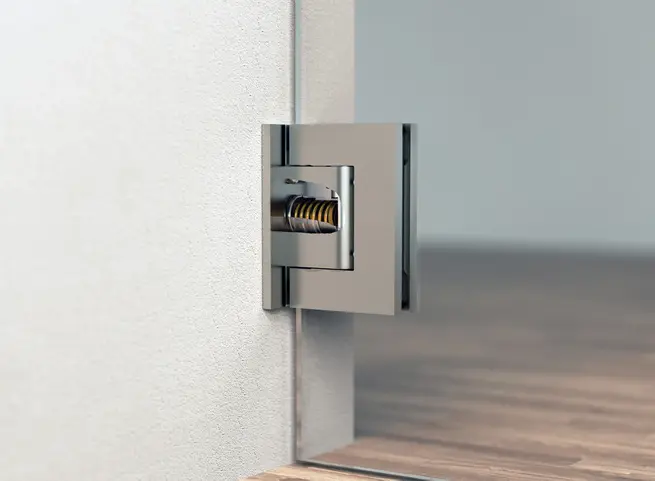

The self-closing screw-on hinge for glass double-action and single-action doors in upmarket residential buildings makes sure doors can be opened manually with little effort and then close automatically with a set speed.
- setting the door closing speed
- 0°-point regulation for double-action doors
- setting for 0°, +90°, -90°
The self-closing hinge is suitable for all door opening angles up to 180° and is also available as a version with automatic closing from 160° to 0° – ideal for separating specific areas in high-value residential buildings, such as large apartments with a lot of square footage.
- glass thickness 8 mm to 21.52 mm
- load capacity up to 120 kg
- setting the end motion
- shock absorbers with an integrated overpressure relief system prevent breakage when accidentally tugged
The pivot hinge for heavy glass double-action doors has an elegant, minimalist design. The portfolio also comprises completely concealed hinges for flush room structures and grants design freedom in sophisticated residential buildings.
- speed regulation system
- load capacity up to 150 kg, max. door width 1200 mm
- glass thicknesses from 8 mm to 19.5 mm
- minimalist design
- model variants for inside and outside doors
The COLLIO screw-on hinge was designed for doors with frames and partition walls and is the solution for double-action and single-action doors with dampers. Its sophisticated functionality and simple appearance make the door hinge a reliable and attractive detail in interiors.
- Glass thicknesses from 6 mm - 12 mm
- Load values from 50 kg - 80 kg
- Max. Door widths up to 900 mm

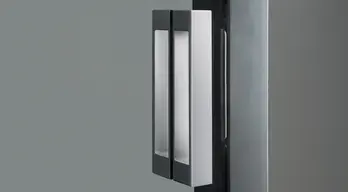

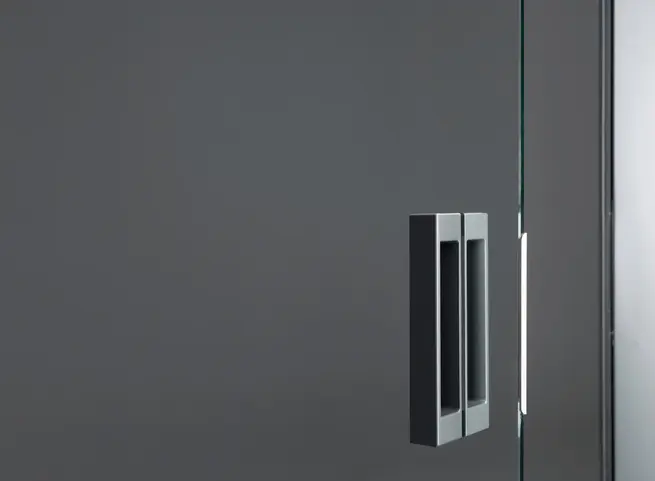

Doors can be moved very comfortably in residential buildings without the usual ‘push-pull-slide’ motion thanks to the alternative KEEP CLOSED latching system
- innovative, zero-current and magnetic
- remains in closed position without direct contact with the closing magnet
- minimal ergonomic effort
- individually adjustable retention force
- perfectly coordinated components
Terhalle Ahaus
Combining the traditional and the modern

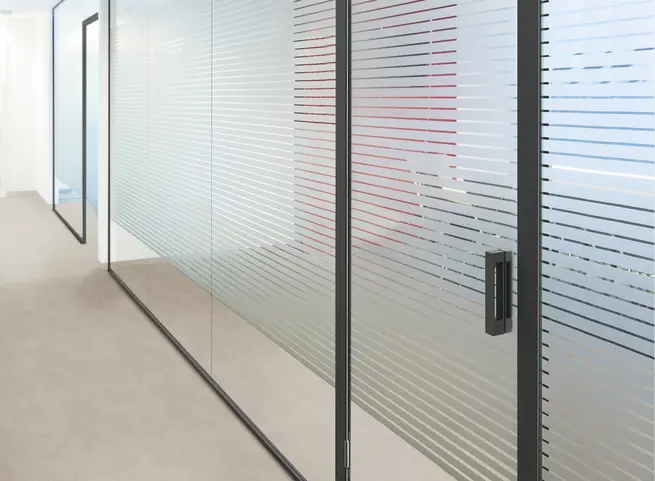

The Terhalle Holzbau in Ahaus Group was founded as a carpentry business and is involved in timber, commercial and interior outfitting and windows and façades. To produce a natural room feel in the interior of the administrative building, spruce with a natural finish was used. The TECTUS Glass was used in all the office rooms, allowing the elegance of the hinge, the large glass surfaces and the use of natural material to interact and harmonise.
